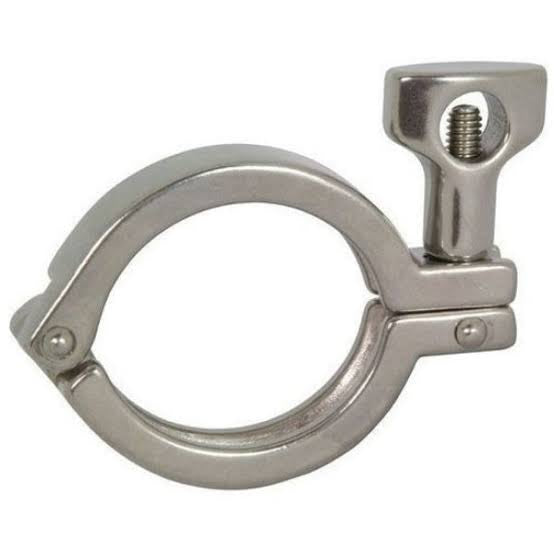

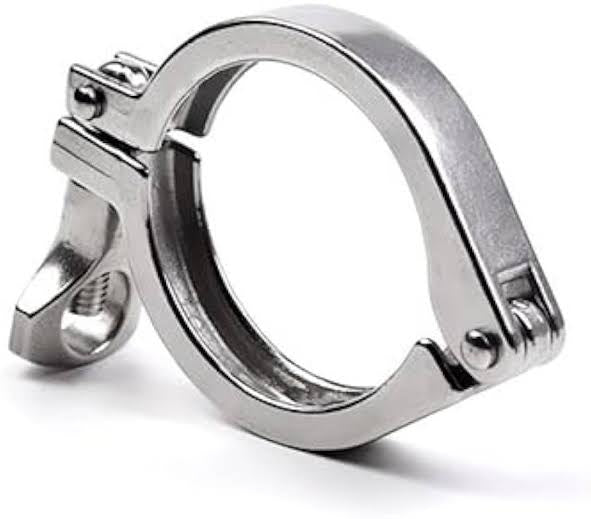

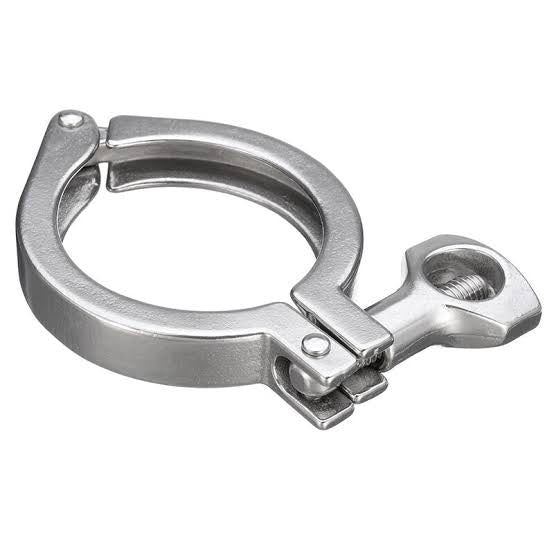

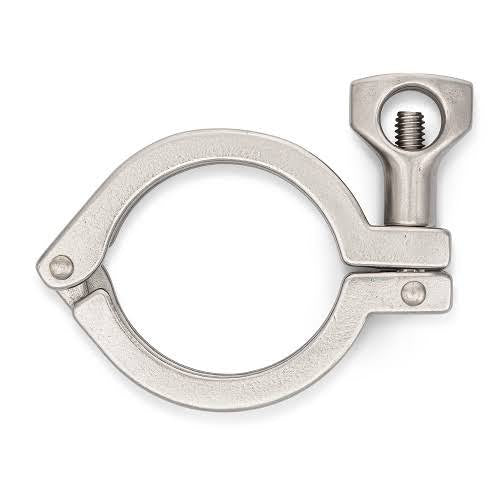

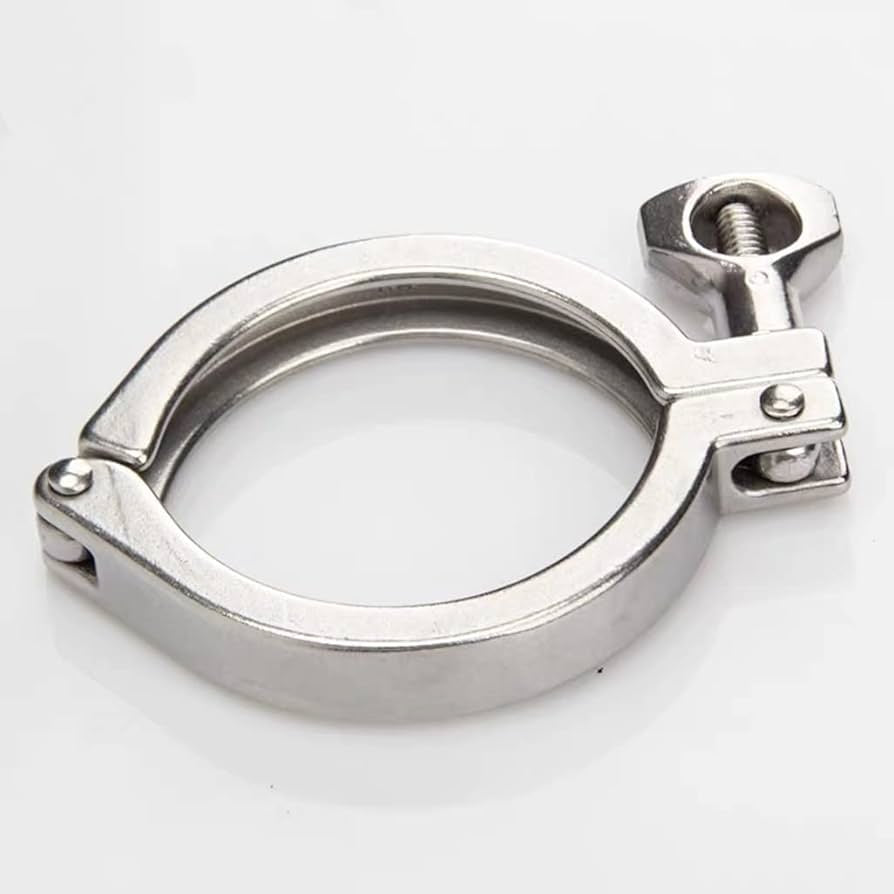

304 TRI CLOVER CLAMP [POLISHED]

304 Stainless Steel Tri Clover Clamp – Polished Finish

Material:

• Grade: AISI 304 Stainless Steel (also known as SS304 or 18/8 Stainless Steel)
• Composition: ~18% Chromium, ~8% Nickel
• Corrosion Resistance: Excellent resistance to corrosion in a wide range of atmospheric and many corrosive media
• Sanitary Grade: Suitable for sanitary/hygienic applications

Design & Structure:

• Type: Tri Clover Clamp (also called Tri Clamp, Tri-Clover Clamp, or TC Clamp)
• Body Design: Two hinged sections connected with a pin, fastened by a wing nut or bolt
• Seal Mechanism: Clamps two ferrules together using a gasket between them to ensure a leak-proof seal
• Size Range: Common sizes – ½”, 1”, 1.5”, 2”, 2.5”, 3”, 4”, and up to 12”
• Pressure Rating: Typically 150 psi to 250 psi depending on clamp size and gasket material
• Finish: Mirror polished or Electro-polished surface (Ra ≤ 0.8 μm or better)

Finish Type:

• Polished Surface (Mirror or Electro-Polished):

• Enhances corrosion resistance
• Improves cleanability
• Meets sanitary standards
• Aesthetic finish suitable for visible or high-purity applications
• Reduces risk of bacterial buildup

Applications:

• Industries:

• Food & Beverage Processing
• Dairy
• Pharmaceutical
• Brewery & Distillery
• Biotechnology
• Cosmetics
• Used for:

• Connecting two ferrules (pipe ends) in sanitary process lines
• Quick and tool-free pipe assembly/disassembly
• Ideal for systems requiring frequent cleaning or reconfiguration (CIP/SIP compatible)

Advantages:

• Quick Install/Release without tools
• Reusable and Durable
• Sanitary and Hygienic compliance
• Compatible with 304/316L sanitary ferrules, gaskets, and end caps
• Custom polishing options available (electro-polishing, mechanical polishing)
