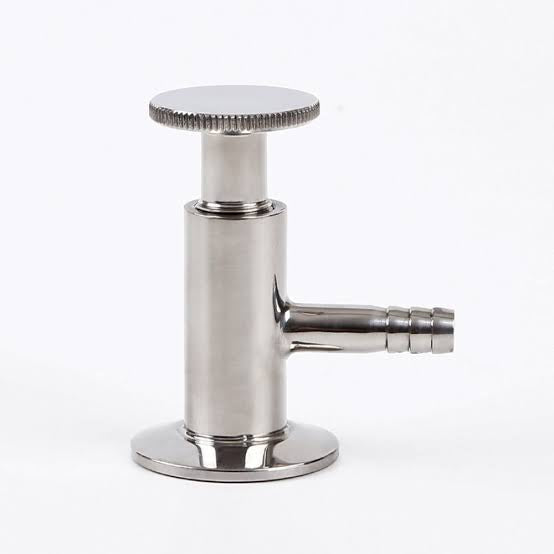

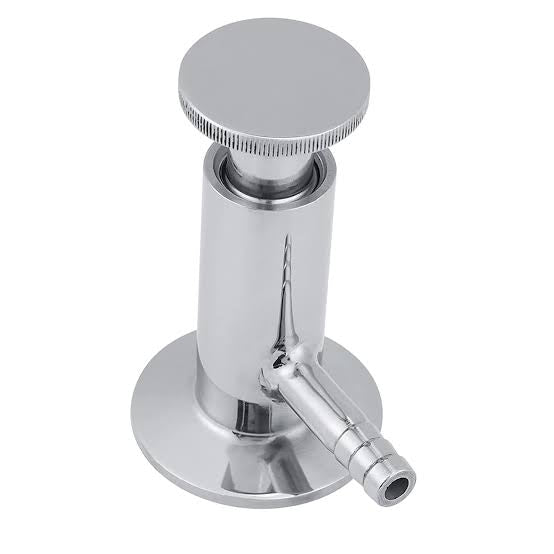

304L SAMPLE COCK VALVE [EP]

The 304L Sample Cock Valve is a precision-engineered sanitary valve used to draw representative liquid samples from tanks, pipelines, and processing systems without contamination. Designed for hygienic industries like dairy, brewery, pharmaceutical, and food processing, it ensures accurate sampling for quality control and analysis.

Material & Construction:

• Material: AISI 304L Stainless Steel (Low Carbon for enhanced corrosion resistance)
• Seal Material: Food-grade EPDM, PTFE, or Silicone (FDA-approved)
• Finish: Inner and outer surface available in electro-polished or mirror finish (Ra < 0.8 µm)
• Body Type: One-piece or welded construction
• Compliance: Conforms to 3A, FDA, and EHEDG standards for hygienic applications

Design & Specifications:

• Type: Manual Sample Cock Valve
• Operation: Hand-operated lever or knob for easy sample release
• Connection Type:

• Tri-Clamp (TC)
• Welded End

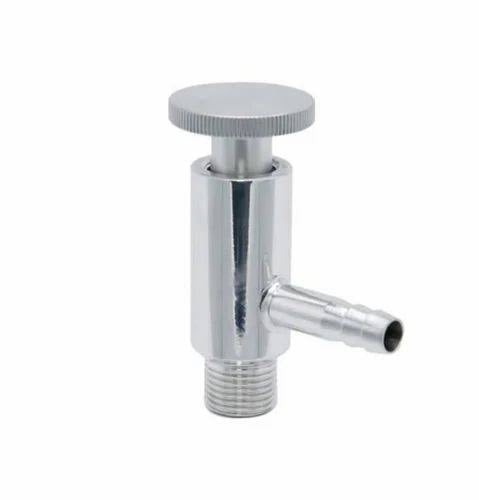

• Threaded End (BSP/NPT available)
• Size Options: 1/4”, 3/8”, 1/2”, 3/4”, 1”
• Temperature Range: -10°C to +120°C (up to 140°C for SIP-capable versions)
• Pressure Range: 0 – 6 bar
• Mounting: Can be installed horizontally or vertically
• Flow Path: Minimal dead-leg design to avoid contamination
• Discharge Port: Optional hose nipple or sample bottle fitting

Key Features:

• Corrosion-resistant 304L Stainless Steel, ideal for hygienic and CIP/SIP systems
• Smooth internal surface for clean, sterile sampling
• Compact and easy to operate, even with gloves
• No-drip, leak-proof design ensures clean operation
• Easy to disassemble and clean, suitable for CIP/SIP
• Custom engraving, laser marking, or logo available for OEM

Applications:

• Dairy Industry: Sampling milk, whey, and cream from tanks
• Brewery & Beverage: Sampling beer, wine, syrup, or juice
• Pharmaceutical: Sampling sterile liquids, suspensions, or cleaning fluids
• Cosmetic & Chemical: Sampling lotions, emulsions, and chemical solutions
• Food Processing: Sampling sauces, oils, or liquid flavorings
