304L TANK CLEANING SPRAY BALL (T.C/ EP)

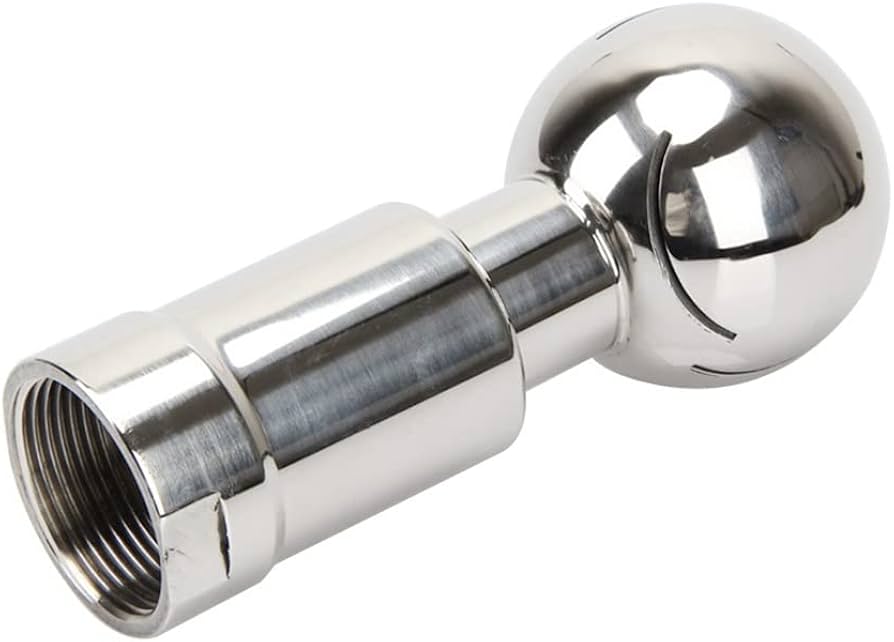

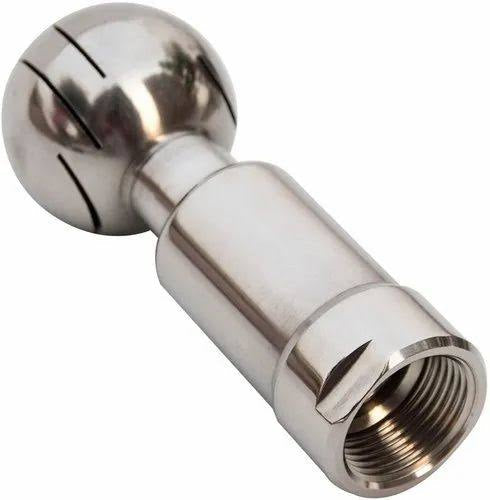

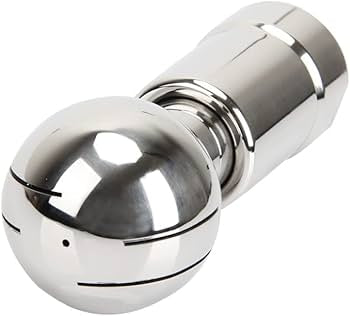

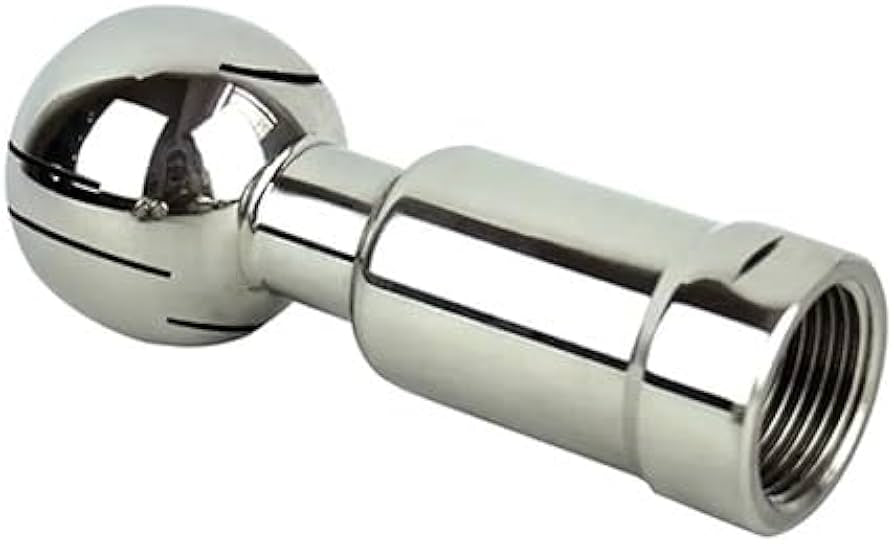

304L Tank Cleaning Spray Ball – CIP Cleaning Nozzle

Product Overview:

The 304L Stainless Steel Spray Ball is a static cleaning device used for Clean-in-Place (CIP) applications in sanitary process tanks and vessels. Engineered for efficiency and durability, it provides 360° or 180° spray coverage to ensure optimal cleaning performance in breweries, dairy tanks, pharmaceutical reactors, food-grade vessels, and chemical processing units.

Material & Construction:

• Material: AISI 304L Stainless Steel
• Finish: Smooth or Electro-Polished (Ra < 0.8 µm available)
• Grade: Low Carbon for enhanced corrosion resistance (ideal for hygienic applications)
• Construction: One-piece or welded depending on model
• Surface: Hygienic design compliant with 3A, FDA, and EHEDG standards

Design Options:

• Type: Static (fixed) Spray Ball
• Spray Pattern:

• 360° Full Spray – for complete tank cleaning
• 180° Upward or Downward Spray – for partial/top/bottom cleaning
• Connection Types:

• Weld End
• Threaded (BSP/NPT)
• Clamp (Tri-Clamp / TC fitting)
• Mounting: Vertical or Horizontal
• Nozzle Hole Design: Optimized for uniform spray distribution
• Flow Range: 20 to 50 L/min (customizable)
• Pressure Range: 1 to 3 Bar
• Recommended Operating Pressure: 1.5 Bar
• Cleaning Radius: 0.8 to 1.5 meters (depending on pressure and model)

Key Features:

• Corrosion-Resistant AISI 304L material for long service life in CIP systems
• Sanitary Design ensures no contamination and easy to clean
• Low Maintenance, no moving parts
• Compatible with hot water or chemical-based cleaning solutions
• Compact and Efficient, suitable for tanks up to 2000L capacity
• Custom Flow Rates and Hole Patterns available on request

Applications:

• Food & Beverage: Milk tanks, fermentation vessels, syrup tanks
• Pharmaceutical: Mixing and reaction vessels
• Chemical Processing: Cleaning of IBCs, small reactors
• Cosmetics: Cream and gel blending tanks
• Breweries: Fermenters and storage tanks
