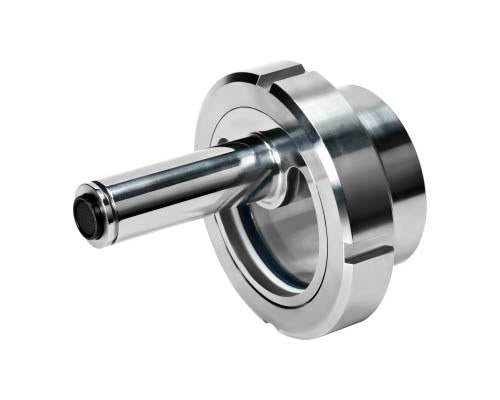

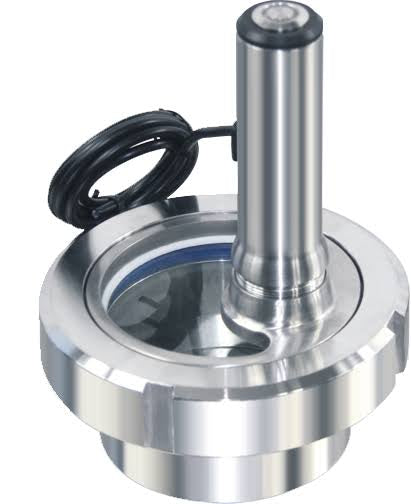

304L Union View Glass with LED Light for Tank [EP]

The 304L Union-Type Tank View Glass with LED Light is a sanitary visual inspection unit designed for tanks and vessels in hygienic processing industries. Equipped with a high-intensity LED light, it provides clear, illuminated visibility inside tanks—essential for monitoring during low-light conditions, night shifts, or in opaque liquids. Ideal for applications in dairy, food & beverage, pharmaceutical, and brewery sectors, this sight glass ensures safety, cleanliness, and superior monitoring capabilities.

Material & Construction:

• Body Material: AISI 304L Stainless Steel (Low Carbon, Corrosion Resistant)
• Glass Material: Borosilicate Sight Glass (Shock and Heat Resistant)
• Seal/Gasket: Food-Grade EPDM, PTFE, or Silicone (FDA Compliant)
• LED Housing: Stainless Steel or Aluminum body with polycarbonate lens
• Finish: Electro-Polished (Ra ≤ 0.6 µm on internal surfaces)
• Design Standard: DIN / SMS / ISO / 3A / IDF (as per requirement)

LED Light Specifications:

• Type: Integrated High-Power LED
• Power Supply: 24V DC / 110V / 220V AC (depending on model)
• Brightness: Up to 3,000 Lumens (customizable)
• Color Temperature: 4000K – 6000K (Cool White)
• Protection Rating: IP65 / IP67 (Dust & Splash Proof)
• Mounting: Direct flange or magnetic clip-on style
• Operation: Can be connected to main control panel or separate switch

Technical Specifications:

• Connection Type: Union End (Threaded) – Weld-on to tank ferrule
• Sizes Available: DN25 to DN100
• Temperature Range: -10°C to 150°C (LED withstands up to 120°C)
• Pressure Rating: Up to 10 bar
• Viewing Diameter: 50 mm to 100 mm clear field of vision
• Optional: Wiper attachment for internal cleaning during operation

Key Features:

• Integrated LED lighting provides excellent visibility inside tanks
• Sanitary, electro-polished 304L body for high-purity applications
• Tool-less removal via union connection for easy cleaning or maintenance
• CIP/SIP compatible – can withstand cleaning cycles
• Fog-free borosilicate glass resists thermal shock and chemical corrosion
• LED light rated for long life (50,000+ hours) with low energy consumption
• Custom light intensity, voltage, or brand (e.g., Osram, Cree) available on request

Applications:

• Dairy Processing: Milk and cream tanks
• Brewery & Beverage: Fermentation tanks, syrup blending
• Pharmaceutical: Sterile mixing tanks, reactors
• Cosmetic & Chemical: Lotion, serum, and emulsifier containers
• Food Processing: Oil, sauce, or additive tanks requiring clear visual monitoring
