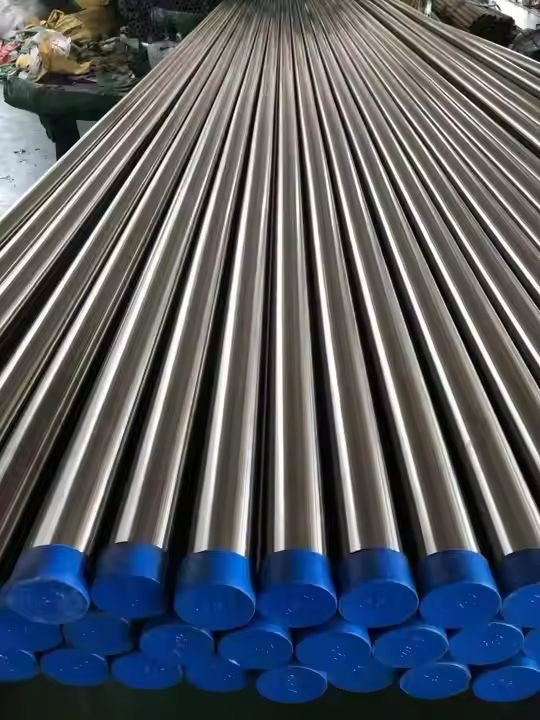

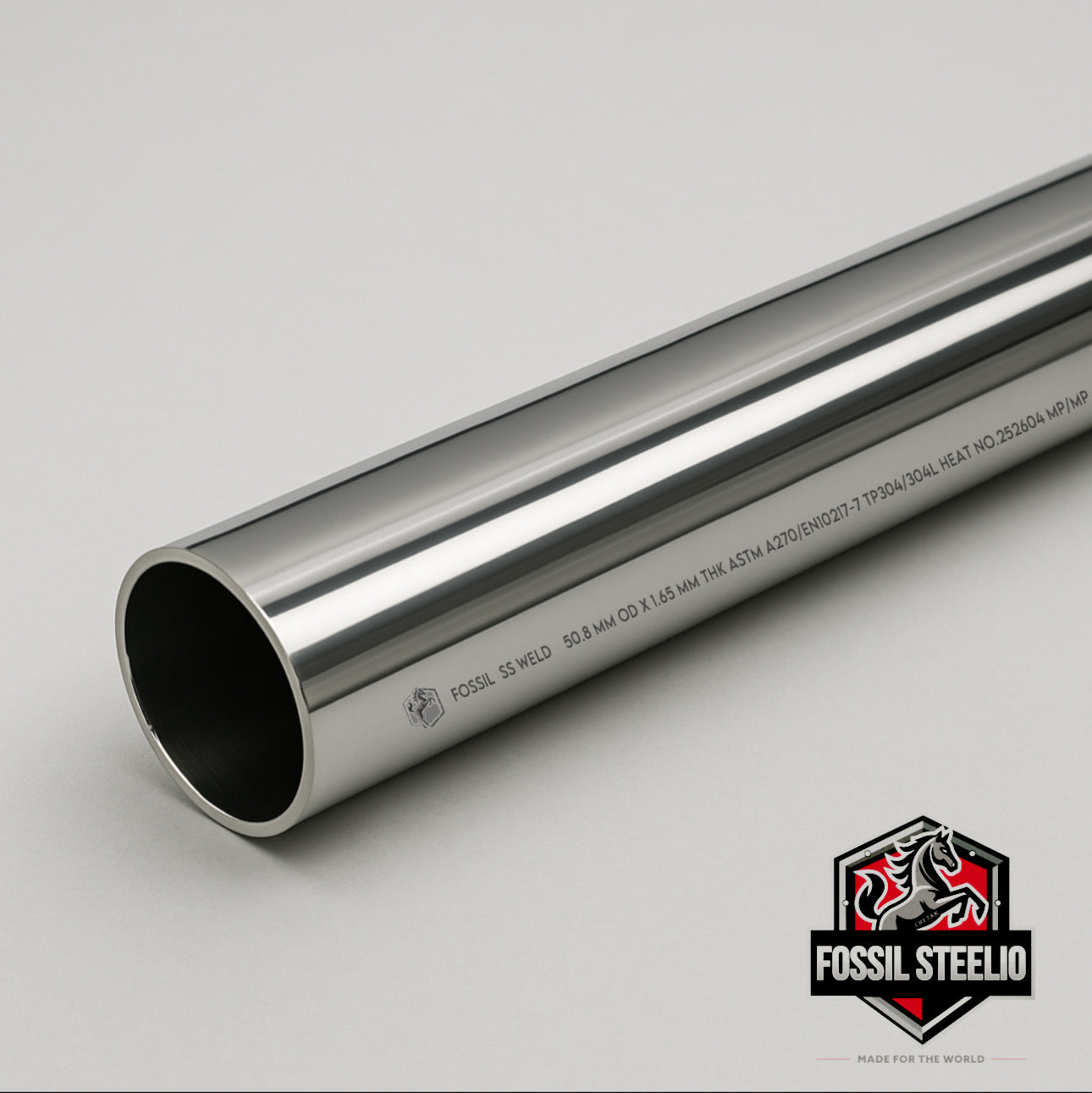

SS 304 ASTM A270 EP TUBE (MP/MP)

The ASTM A270 EP Stainless Steel Pipe is a high-purity, sanitary-grade tubing specifically manufactured for critical applications in the pharmaceutical, biotech, food, dairy, and beverage industries. These pipes undergo advanced electro-polishing (EP) to achieve an ultra-smooth, corrosion-resistant surface that minimizes bacterial adhesion and ensures maximum hygiene compliance.

Material & Standards:

• Material Grades: AISI 304, 304L, 316, 316L (as per ASTM A270 standard)
• Specification: ASTM A270 / ASME SA270
• Manufacturing Method: Seamless (SMLS) or Welded (WLD), with laser or TIG welding
• Compliance:

• ASME BPE (optional) for Biopharmaceutical use
• 3A Sanitary Standard for dairy and food
• EN 10357 / ISO 2037 (on request for international clients)
• PMI, MTC, Ra, and Surface Certification provided

Surface Finish:

• Internal Surface:

• Electro-Polished (EP) to Ra ≤ 0.38 µm (15 µin) or as per customer requirement
• External Surface:

• Bright Annealed / Electro-Polished / Satin Finish (customizable)
• Cleaning: Passivated and ultra-sonically cleaned, ready for installation

Technical Specifications:

• Outer Diameter (OD): 1/2” to 8” (12.7 mm to 203.2 mm)
• Wall Thickness (WT): 0.065” to 0.12” (1.65 mm to 3.05 mm)
• Length: 6 meters standard (custom lengths available)
• Ra Value (Roughness):

• EP Internal Surface: Ra ≤ 0.38 µm (15 µin)
• Mechanical Polish (MP): Ra ≤ 0.51 µm (20 µin)

Key Features:

• Superior corrosion resistance in high-purity and cleanroom environments
• Electro-polished ID minimizes microbial adhesion and ensures clean fluid transfer
• CIP/SIP compatibility for automated cleaning processes
• Excellent weldability and dimensional consistency
• Tested and certified for thickness, roughness, chemical, and mechanical properties
• Custom marking with heat number, grade, and Fossil Steelio branding available

Applications:

• Pharmaceutical & Biotech: WFI systems, clean steam, process lines
• Food & Dairy: Milk, cream, yogurt, or ice cream processing lines
• Beverage: Soft drinks, beer, wine, syrup, water filtration
• Cosmetic & Personal Care: Serum, lotions, and essential oils
• Semiconductor / Lab Use: Ultra-pure chemical transfer
