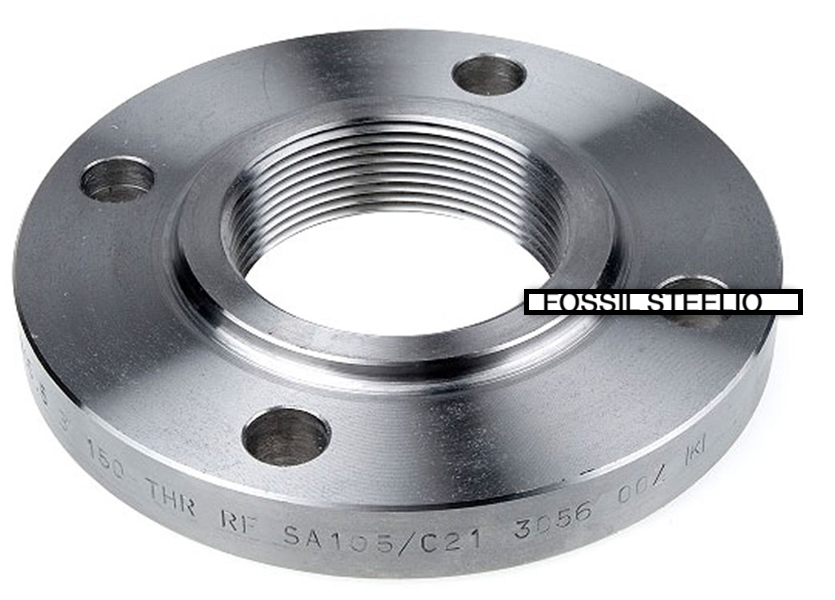

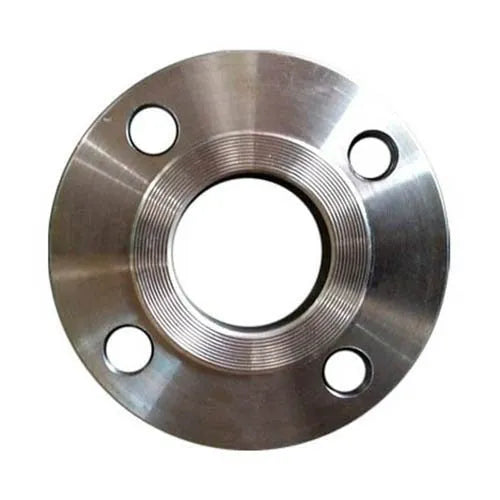

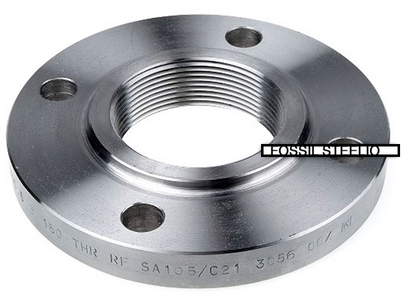

SS 304 FLANGE SORF CL-150#

Stainless Steel 304 (UNS S30400 / AISI 304 / EN 1.4301)

• Type: Austenitic stainless steel

• Composition:

  • Chromium: ~18–20%

  • Nickel: ~8–10.5%

• Properties:

  • Excellent corrosion resistance

  • Good weldability and machinability

  • Non-magnetic in annealed condition

  • Operating temperature: up to ~870°C (1598°F)

🔗 Flange Type:

Slip-On Raised Face (SORF)

• Design:

  • Bore slightly larger than the pipe's outer diameter

  • Pipe slips into the flange and is welded both on the inside and outside (fillet welds)

  • Raised Face (RF): Provides a larger sealing surface; compatible with flat ring gaskets

⚙️ Pressure Class:

Class 150 (CL-150#)

• Defined by ANSI/ASME B16.5

• Designed for a max pressure of:

  • ~285 psi at 100°F (for SS 304)

  • Pressure rating decreases as temperature increases

• Suitable for low-pressure piping systems

📐 Standards and Dimensions:

• Standard: ASME B16.5 (for flanges NPS ½” to 24”)

• Face Finish:

  • Typically a concentric or spiral serrated finish

  • Roughness: 125–250 AARH (μin)

• Drilling:

  • Bolt holes drilled per ANSI/ASME standards

  • Typically 4, 8, 12 holes depending on size

🏭 Applications:

• Water pipelines and treatment plants

• Oil & Gas (non-critical low-pressure areas)

• Chemical processing industries

• Food & beverage processing

• Pharmaceutical systems

• HVAC and fire fighting lines

📄 Additional Options:

• Can be supplied with:

  • Test Certificates (EN 10204 3.1 or 3.2)

  • Heat numbers and mill markings

  • Pickled & passivated finish

• Available in:

  • Forged or machined finish

  • Also with protective coatings or mirror polish (if needed)
