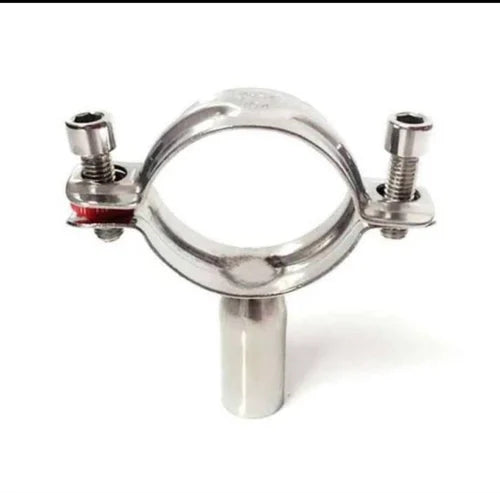

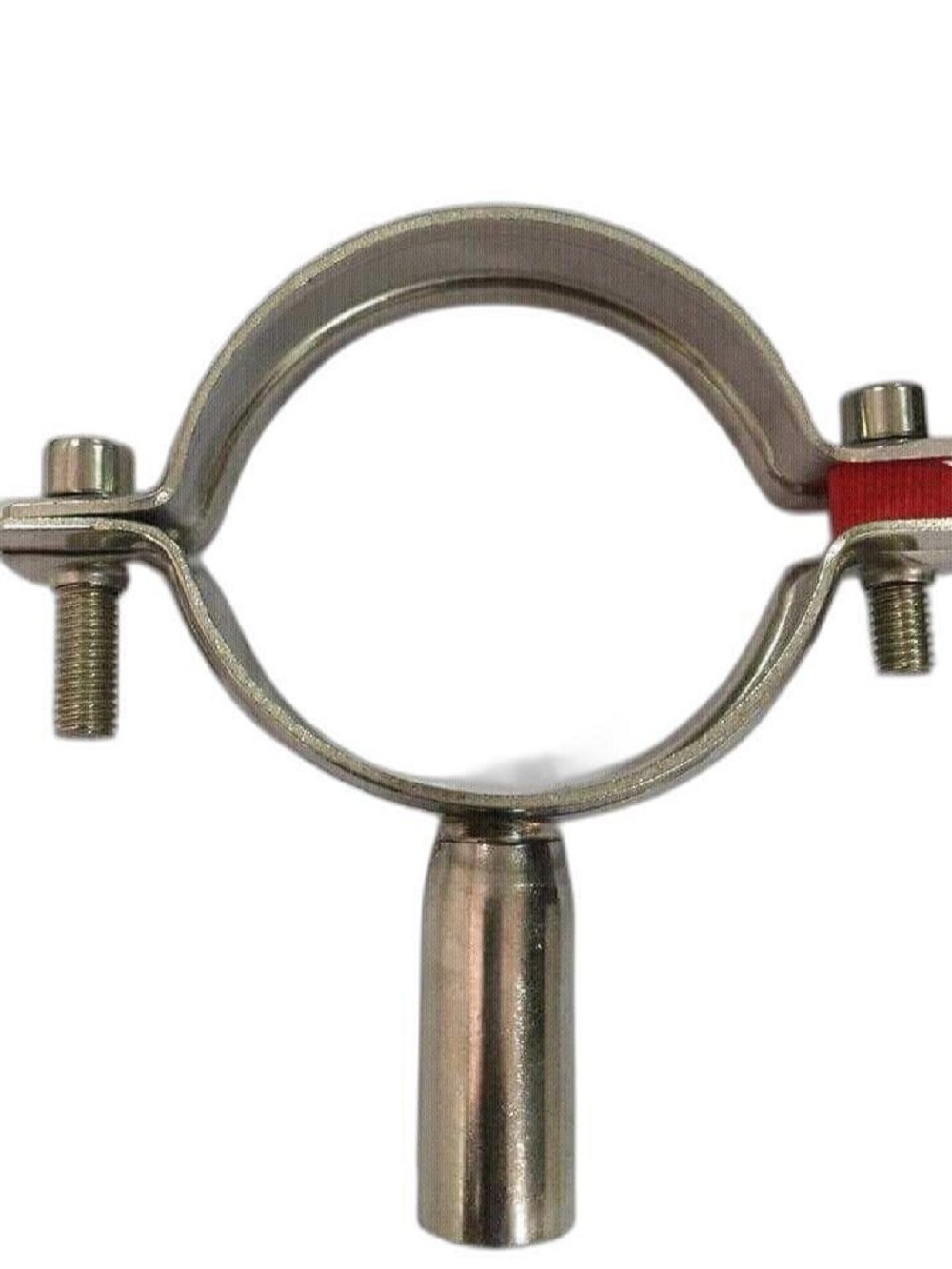

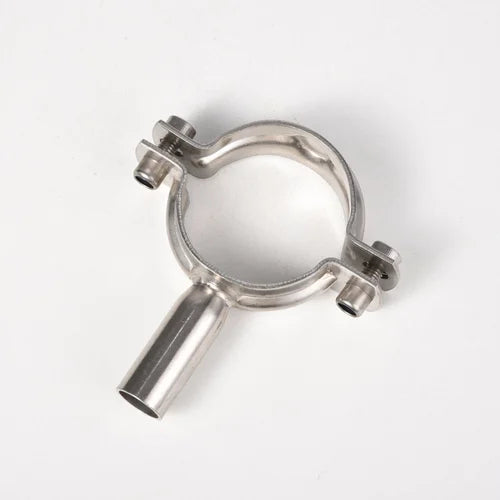

SS 304 PIPE HOLDING CLAMP ELECTRO POLISH

The Stainless Steel 304 Pipe Holding Clamp, electropolished for hygienic performance, is designed to securely support and stabilize piping systems in clean and sterile environments. Ideal for use in food, beverage, dairy, pharmaceutical, and cosmetic production facilities, this clamp ensures reliable pipe alignment while maintaining high standards of cleanliness and corrosion resistance.

Manufactured from AISI 304 stainless steel, the clamp features smooth edges and a non-contaminating surface finish, minimizing the risk of bacterial growth or material buildup. The electropolished finish enhances surface passivation, making the clamp suitable for CIP/SIP systems and environments where product purity and visual cleanliness are critical.

Clamps are available in single or double clamp configurations, with optional rubber inserts or silicone sleeves for vibration dampening and thermal isolation. Designed to accommodate metric or inch-sized tubing, these clamps are easy to install using threaded rods, weld plates, or wall brackets.

Key Features:

• Material: Stainless Steel AISI 304

• Finish: Electropolished – Smooth surface, Ra ≤ 0.8 μm

• Type: Single or Double Clamp

• Size Range: DN10 to DN150 (½" to 6") tubing

• Mounting Options:

  • Welded base

  • Screw-on base

  • Adjustable height rod systems

• Optional Inserts:

  • EPDM, Silicone, PTFE (FDA compliant)

• Temperature Range: -20°C to +120°C (depending on insert)

• Corrosion Resistance: Excellent in wet and washdown areas

• Standards Compliance: 3-A, FDA, ISO 9001

Applications:

• Pharmaceutical Process Lines

• Food & Beverage Production Facilities

• Dairy Plants & Creameries

• Breweries & Distilleries

• Cleanrooms & Sterile Manufacturing Environments

• Cosmetics & Personal Care Product Pipelines
