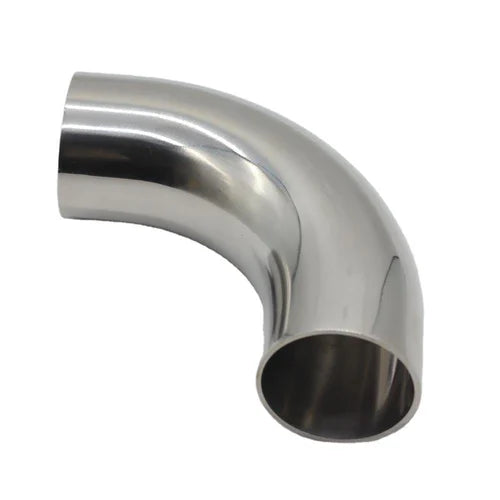

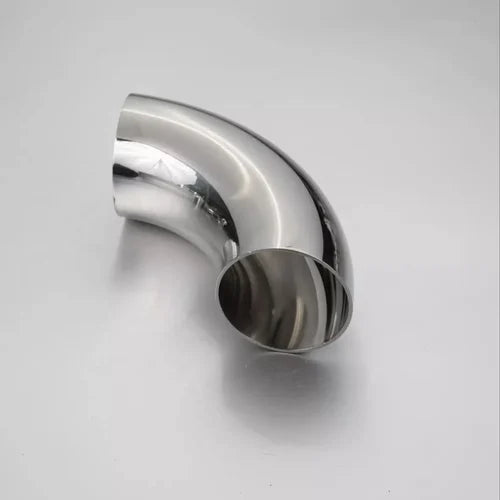

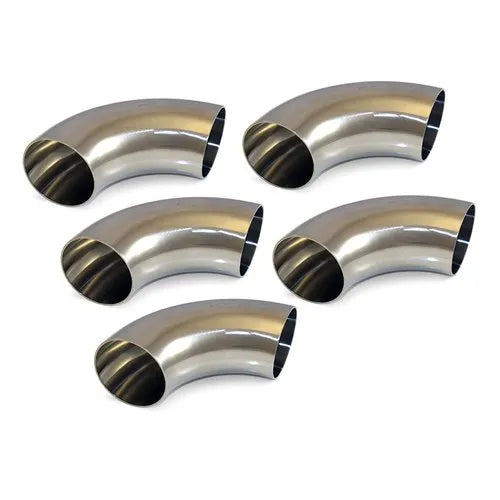

SS 304L BEND 90* SMS ELECTRO POLISH [SMS]

The Stainless Steel 304L 90° Bend with SMS Ends is a sanitary-grade pipe fitting used to change flow direction in hygienic process lines. Manufactured from AISI 304L stainless steel, this fitting offers excellent corrosion resistance, low carbon content for superior weldability, and is ideally suited for clean and sterile environments.

The bend is equipped with SMS union ends (per SMS 1145 standard), allowing for easy disassembly, inspection, and cleaning—ideal for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems. The electropolished internal surface (Ra ≤ 0.8 μm) ensures a bright, smooth finish that reduces the risk of product buildup and bacterial contamination.

Designed for food, beverage, dairy, pharmaceutical, and cosmetic processing systems, this 90-degree elbow ensures minimal flow resistance and hygienic performance.

Key Features:

• Material: Stainless Steel AISI 304L

• Design: 90° Elbow / Bend

• Connection Ends: SMS Union (liner + male + nut)

• Surface Finish: Electropolished (Internal Ra ≤ 0.8 μm)

• Size Range: DN25 to DN100 (1" to 4")

• Bend Radius: According to SMS or custom radii available

• Wall Thickness: As per SMS dimension standards

• Working Pressure: Up to 10 bar (145 psi)

• Temperature Range: -10°C to +130°C (depending on seal/gasket)

• Machining: CNC precision for dimensional accuracy

• Compliance: SMS 1145, 3-A, FDA, ISO 9001, CE

Applications:

• Dairy & Milk Processing Plants

• Food & Beverage Pipelines

• Pharmaceutical & Biotech Clean Rooms

• Breweries & Distilleries

• Cosmetic & Personal Care Production Lines

• Chemical and Water Purification Systems
