SS 304L PHUMETIC BUTTERFLY VALVES ELECTRO POLISH TC END

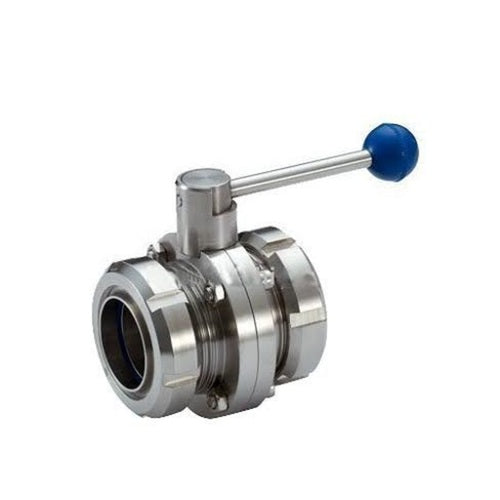

The Stainless Steel Butterfly Valve with SMS Unions is a sanitary-grade flow control solution designed for use in hygienic processing systems. Fabricated from high-quality SS 304 or SS 316L, this valve ensures superior corrosion resistance, mechanical strength, and long-lasting performance in clean environments.

Fitted with SMS (Swedish Manufacturing Standard) union ends, the valve provides quick and secure connections in processing lines, ensuring easy assembly, disassembly, and maintenance—perfect for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems. SMS unions are widely used in European and global sanitary process systems, offering a robust and hygienic connection ideal for food, dairy, and pharmaceutical piping.

The valve's butterfly disc is centrally mounted and rotates 90°, allowing full open or closed position with minimal effort. It can be operated manually via a stainless steel lever handle or automated using pneumatic or electric actuators. A range of FDA-compliant seal options ensures compatibility with various process media.

Key Features:

• Body Material: Stainless Steel AISI 304 / 316L

• Disc Material: Stainless Steel 304 / 316L

• Connection Ends: SMS Unions (male, liner, nut)

• Operation: Manual (lever), Pneumatic, or Electric

• Surface Finish: Internal Ra ≤ 0.8 μm (electropolished optional)

• Seal Options: EPDM, PTFE, FKM (Viton), Silicone – all FDA approved

• Size Range: DN25 to DN100 (1" to 4")

• Working Pressure: Up to 10 bar

• Temperature Range: -10°C to +120°C (depending on seal material)

• Standards: SMS 1145, 3-A, FDA, ISO 9001, CE

• Hygienic Design: Dead-leg free, crevice-free, easy to clean

Applications:

• Dairy Processing Plants

• Food & Beverage Production

• Pharmaceutical & Biotechnology Facilities

• Cosmetics and Personal Care Manufacturing

• Brewery and Distillery Pipelines

• Chemical and Fluid Processing Lines
