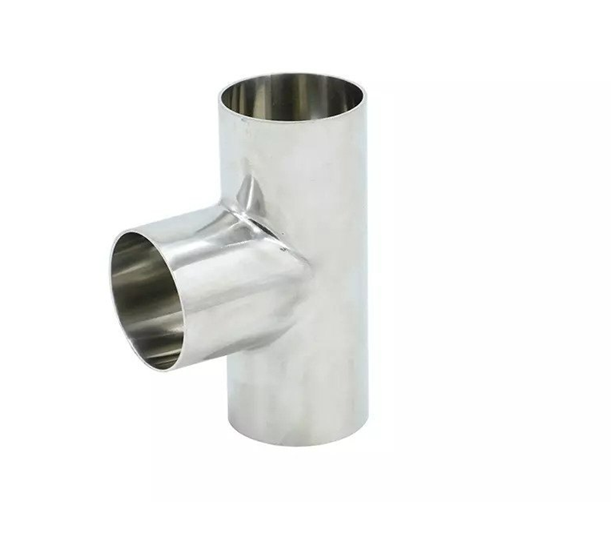

SS 304L UN-EQUAL TEE ISO ELECTRO POLISH

The Stainless Steel 304L Un-Equal Tee with ISO end connections is a hygienic pipe fitting designed to connect three pipes of different sizes at 90° angles. It is widely used in process systems where controlled fluid diversion or merging is required, particularly in dairy, food & beverage, pharmaceutical, and cosmetic industries.

Constructed from AISI 304L stainless steel, this fitting ensures excellent corrosion resistance, mechanical durability, and low carbon content for enhanced weldability. The electropolished internal surface (Ra ≤ 0.8 μm) improves cleanability, reduces microbial risk, and ensures compliance with hygienic process standards.

The un-equal (or reducing) tee features two ports of one diameter and a third of a smaller or larger size, making it ideal for reducing or distributing flow while maintaining sanitary integrity. The ISO-compliant connections (weld or clamp ends) ensure compatibility with international sanitary piping systems.

Key Features:

• Material: Stainless Steel AISI 304L

• Type: Un-Equal Tee (Reducing Tee – different branch size)

• Connection Ends: ISO Weld or Clamp Ends (ISO 1127 / 2852 compliant)

• Surface Finish: Electropolished – Internal Ra ≤ 0.8 μm

• Sizes Available:

  • Main Line: DN50, DN65, DN80, etc.

  • Branch: DN25, DN40, etc.

• Wall Thickness: Per ISO 1127 standard

• Manufacturing: CNC Precision Machined

• Temperature Range: -10°C to +130°C

• Working Pressure: Up to 10 bar (depending on system specs)

• Standards: ISO 1127 / 2852, 3-A, FDA, CE, ASME BPE

Applications:

• Dairy and Milk Processing Systems

• Food & Beverage Production Pipelines

• Pharmaceutical & Biotech Cleanroom Systems

• Breweries and Distilleries

• Cosmetic and Personal Care Product Manufacturing

• Chemical and High-Purity Water Installations
