SS304L TRI CLOVER SET [COMPLETE] ELECTRO POLISH

The Stainless Steel 304L Tri-Clamp (Tri-Clover) Set – Complete is a premium-grade, sanitary connection assembly designed for use in food, beverage, pharmaceutical, and biotech process piping systems. This hygienic connection system allows for quick, secure, and tool-free assembly and disassembly, making it ideal for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations.

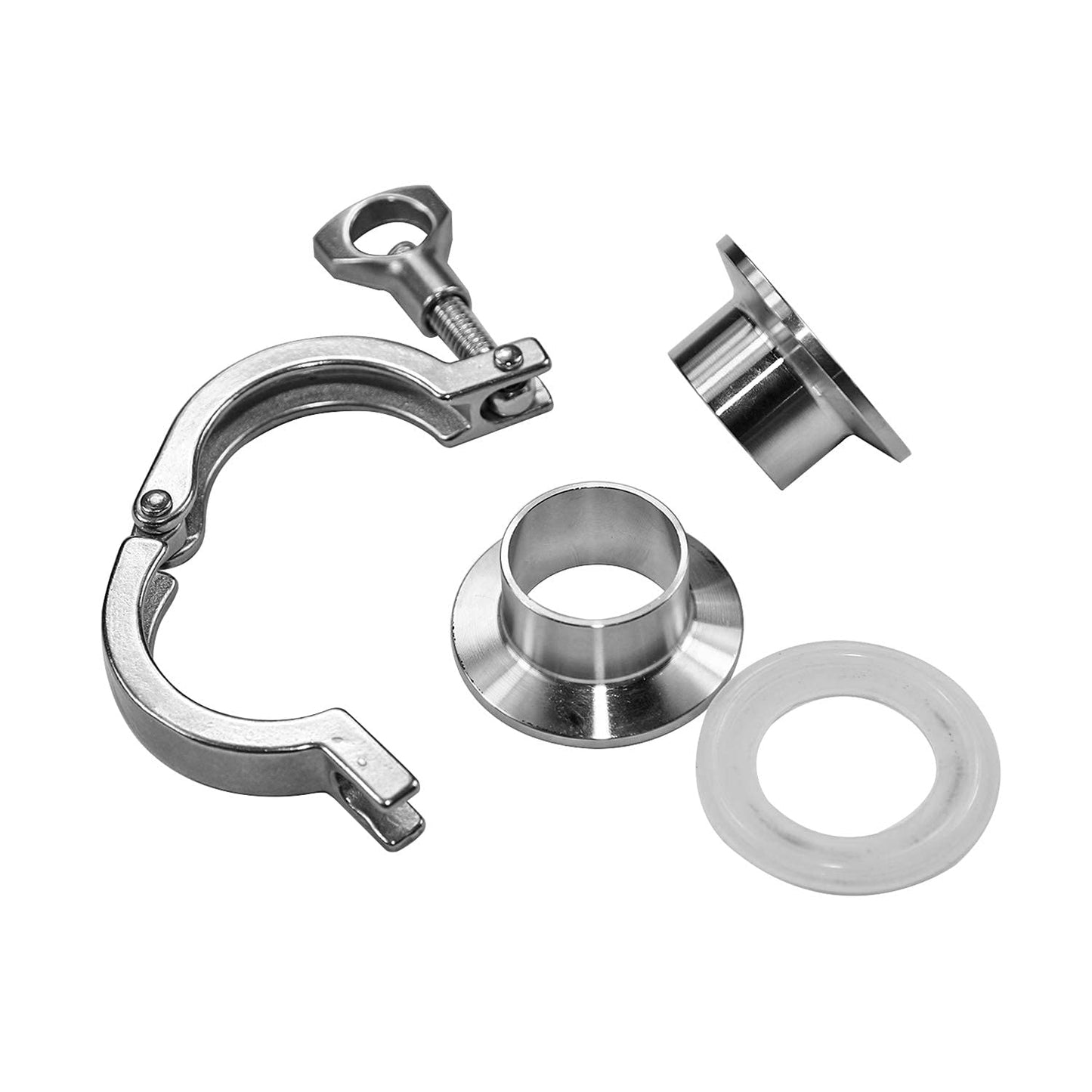

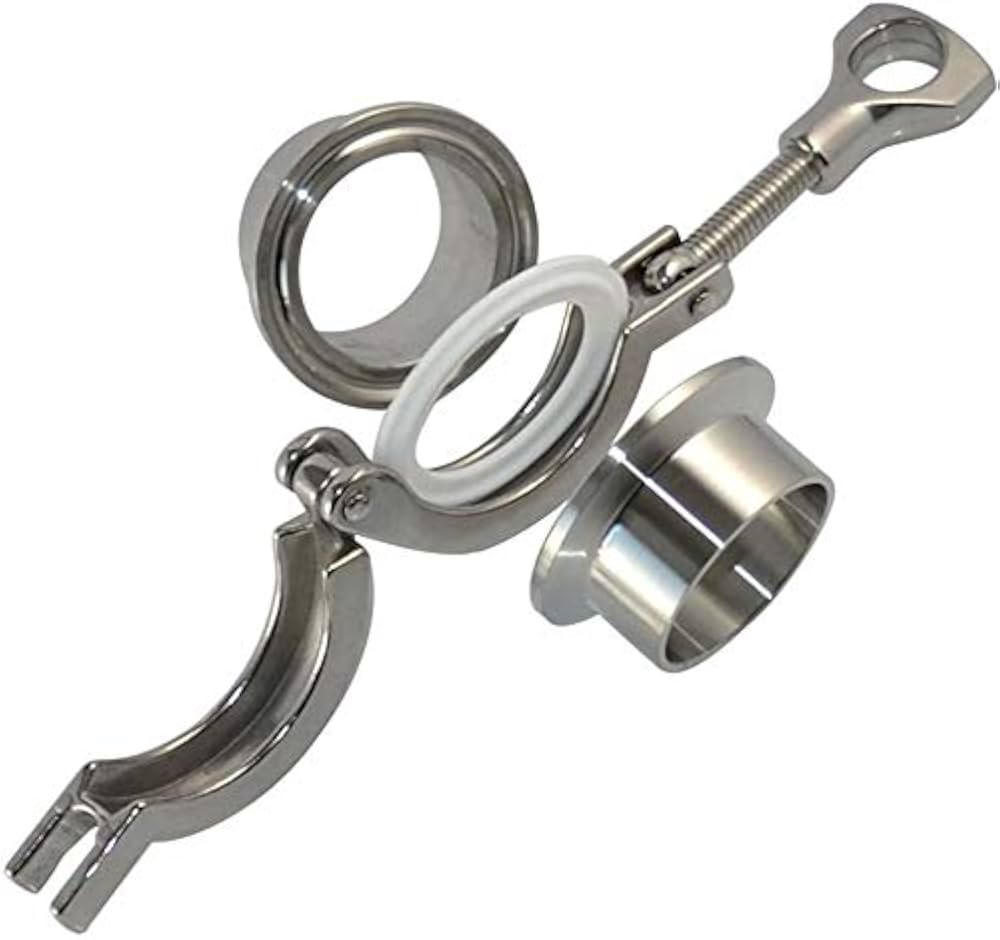

Each complete Tri-Clamp set includes:

• 2 x Ferrules (Short or Long)

• 1 x Tri-Clamp (Single-pin or Double-pin)

• 1 x Gasket (EPDM / Silicone / PTFE / Viton – FDA compliant)

Manufactured from AISI 304L stainless steel, the set offers excellent corrosion resistance and high cleanability. The electropolished internal surface (Ra ≤ 0.8 μm) ensures minimal product adhesion and optimal hygienic performance.

Key Features:

• Material: Stainless Steel AISI 304L

• Set Includes:

  • (2) Ferrules (ISO / DIN / SMS / ASME BPE standards)

  • (1) Clamp (Hinged / Double-pin / High-pressure available)

  • (1) Gasket (FDA-approved EPDM / Silicone / Viton / PTFE)

• Surface Finish: Electropolished (Ra ≤ 0.8 μm)

• Clamp Sizes Available: ½" to 6" (DN15 to DN150)

• Ferrule Lengths: Short weld, Long weld, or Custom

• Working Pressure: Up to 10 bar (depends on clamp type)

• Temperature Range: -20°C to +150°C (gasket dependent)

• Standards Compliance:

  • ASME BPE

  • 3-A Sanitary

  • FDA

  • ISO 1127

  • CE / ISO 9001

Applications:

• Food & Beverage Production Lines

• Pharmaceutical & Biotech Process Systems

• Dairy and Milk Processing Equipment

• Brewery & Distillery Systems

• Cosmetic & Personal Care Industries

• High-Purity Chemical and Water Systems
